Description
Compact and portable escalator cleaning machine

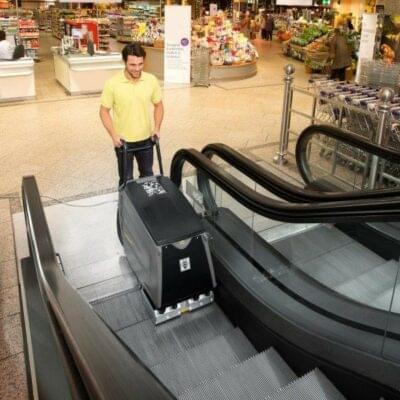

The Karcher BR 47/35 Esc makes it possible to wet-clean an escalator while it is moving. Deep cleaning and maintenance cleaning operations can be performed six to seven times faster than with other systems available in the marketplace. Furthermore, the machine is also suitable for travellators.
This remarkable, robust machine features a tubular steel chassis and stainless steel tank and functions like a scrubber drier. Operating the Karcher BR 47/35 Esc requires very little training, making it especially well suited for contract cleaners and with its compact dimensions, the Karcher BR 47/35 is easy to transport to and from sites.
MACHINE IS SUPPLIED COMPLETE AND READY TO USE!
Complete With: Escalator Brushes.
-
- Cleaning brushes
- Pick-up brushes
- Mains operation
- Suction motor, 800 W
Features
Suitable for escalators.
- Combs which enter the grooves in the escalator provide the necessary vacuum.
- Different combs are available to suit different types of escalators. This ensures that the water is effectively vacuumed from the escalator.
Excellent suction power
- The applied water is reliably sucked back into the machine by the two powerful suction turbines together with four straight suction hoses and matching combs.
- Prevents water from dripping into the escalator shaft.
Excellent suction power
- Prevents water from dripping into the escalator shaft.
Easy to stand up at the rear of the machine during operation
- Easy to use
Brush and comb replacement without tools
- When the tanks are empty, the brushes and combs can be changed without additional tools.
Brush head is lowered on escalators
- Safe handling
High quality
- High-quality components reduce the maintenance requirements to a minimum
No vibrations
- More comfort
Powerful suction turbine
- For extremely high suction power. The applied water is reliably sucked back into the machine together with four straight suction hoses and matching combs.
Short brush head
- For universal use. Also suitable for cleaning escalators that ascend after 1½ steps.
Technical data
| Working width (mm) | 470 |
| Working width of brushes (mm) | 470 |
| Working width, vacuuming (mm) | 470 |
| Max. area performance (m²/h) | 75 |
| Fresh/dirty water tank (l) | 35 / 35 |
| Fresh water container capacity (l) | 35 |
| Brush rotational speed (rpm) | 870 / 1090 |
| Brush speed, sweeping (rpm) | 870 |
| Brush speed, washing (rpm) | 1090 |
| Motor rating of brush motor (W) | 1100 |
| Suction motor (W) | 800 |
| Sound pressure level (dB(A)) | 75 |
| Water volume (l/h) | 60 |
| Pressure (bar) | 4 / 7 |
| Current type (V/Hz) | 220 – 240 / 50 – 60 |
| Drive type | Mains operation |
| Weight without accessories (kg) | 105 |
| Weight (with accessories) (kg) | 90 |
| Dimensions (L × W × H) (mm) | 1129 x 480 x 1031 |
